Cosmic Circuits Pvt. Ltd

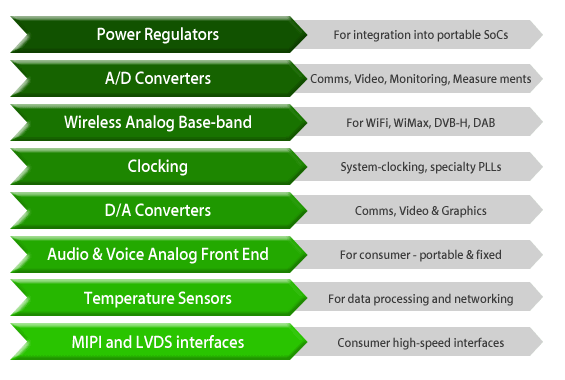

Cosmic Circuits사는 인도 Bangalore에 본사가 위치하고 있는 Analog IP 전문회사입니다. Cosmic Circuits사는 차별화된 Analog-Mixed Signal silicon IP 및 Custom Analog IP를 제공하고 있으며, High-Advanced Technology SoC(90nm ~ 40nm)에 필요로 하는 다양한 Analog IP들을 개발하여 고객들에게 제공하고 있습니다. 뿐만 아니라 해외 유수 Foundry사들의 IP Vendor로 기 등록되어 다양한 IP들을 porting 해 놓음으로써 고객들이 언제든 필요로 하는 IP들을 적시에 사용할 수 있도록 하고 있습니다. Cosmic Circuits사는 현재 150여개 이상의 Analog & Mixed Signal IP들을 보유하고 있으며, 120여명의 전문 Engineering Group을 통해 고객들에게 특화된 서비스를 제공하고 있습니다.


Family Name Function Process node Process Flaver Status Foundry
ADC CC120801QADC-N55LP 12-bit 80 MSPS Dual A/D Coverter 55nm Low Leakage Bronze NEC
CC14016SDADC-T65LP 14-bit 1.6 KSPS low-power sigma-delta
ADC for measurement applications		 65nm Low Leakage Silver TSMC
CC12100ADC-C130G 12-bit 100MSPS A/D coverter working off 1.2V supply and low-power consumption for Communication, Videp and Graphics. 130nm Generic Gold Chartered
CC12205ADC-C130G 12-bit 205MSPS A/D converter working off 1.2V supply and low-power consumption for Communication, Video and Graphics. 130nm Generic Silver Chartered
DAC CC12160IQ DAC - T40LP 12-bit 160MSPS Dual D/A Converter 40nm Low Leakage Silver TSMC
CC12160IQ DAC - C65LPE 12-bit 160MSPS Dual D/A Converter 65nm Low Leakage Silver Chartered
AFE CCWiMOAFE00 - T40LP Analog Front end platform for WLAN and WiMAX single and multi-channel MIMO systems, with low die-area and recive power. 40nm Low Leakage Silver TSMC
CCWiMOAFE00 - N55LP Analog Front end platform for WLAN and WiMAX single and
multi-channel MIMO systems, with low die-area and receive power.		 55nm Low Leakage Bronze NEC
Power management CC4210BK-T40LP

Buck DC -DC converter, input voltage:2.7 v to 4.2 v,
Programmable output voltage:1.0v nominal output, 400mA load, Excellent Effciency, Low inductor size

 40nm Low Leakage Silver TSMC
CC18150VREG-T40LP Voltage Regulator, 2. 0-v-3. 3v input, 1.4 V-2.5V programmable output, 150mA load, provides clean supply for digital logic (voltage islanding) 40nm Low Leakage Silver TSMC
CC33080LDO-T65LP Low-Drop-Out Voltage Regulator, 3.0-3.6v input, 2.5-2.8V output, 100mAload, provides clean supply for digital and analogblocks
 65nm Low Leakage Gold TSMC
CC18150ULNREG-S65LP Ultra-low-noise, high -PSRR, push-pull Volage Regulator,1.62-3 .6v input, 1.0V-1.2V output, 150mA-90mA load 65nm Low Leakage Silver Samsung
CC3312DPOR-C65LPE Power -On-Reset (POR) for 1.2V core and 3.3 V IO supplies, with programmable assertion delay 65nm Low Leakage Bronze Chartered
Clocking CC1322INPLL0T40LP Integer PLL with input range from 13MHz-40MHz and a 2.2GHz VCO, low 15pS rms jitter 40nm Low Leakage Silver TSMC
CC0823INPLL-N55LP Integer PLL with input range from 8MHz-40MHz and a 2.3GHz VCO, low 5pS rms jitter 55nm Low Leakage Bronze NEC
CC1015FNPLL-90LP Fractional-N PLL with input range from 13MHz -40MHz and a 1.5GHz VCO frequency, 0.03Hz frequency resolution,
low jitter 25pS rms
 90nm Low Leakage Gold IMB
Interface CCMIPITXDTHY-T65LP MIPI ®compliant 1.0GHz Transmitter 65nm Low Leakage Bronze TSMC
CCMIPIRXDPHY-T65LP MIPI ®compliant 1.0GHz Receiver 65nm Low Leakage Bronze TSMC
CC800LVDSTX-T90G 800Mbps LVDS Transmit Cell with intermal termination
programmable voltage-swing and common-mode		 90nm Generic Gold TSMC
Amplifier for Audio CC20050AMPD-C65LPE Headphone CLASS-D driver with 96 dB dynamic range 65nm Low Leakage Silver Chartered
ADC for Audio CC16024AUADC-C65LPE 256-OSR, 96 dB dynamic range Sigma-deta Stere ADC 65nm Low Leakage Silver Chartered
Speaker Driver for Audio CC20500AMPD-F90LL 20b Digital High-Performance Fiter-less 500mW Class -D
Speaker Driver		 90nm Low Leakage Silver Fujitsu
ADC for Audio CC16016SDADC - C130LP 16-bits 1. 6KSPS low-power sigma-delta ADC for measurement applications 130nm Low Leakage Silver Chartered
DAC for Audio CC2048SDDAC-N150G 20-bit High-Perfomance Stereo DAC 150nm Generic Silver IDM
Note : Gold = Silicon Proven IP
  Siliver = GDS Available
  Bronze = Under Development
  Copper = Roadmap





Physical Layout (GDS)
Netlist
Foot-print model (.LEF)
Timing model (.LIB)
Verilog models where applicable
Evaluation boards(where available)
Documents
      - Datasheet
      - Integration guidelines (signal routing, power-routing, placement, and ESD aspects)
      - Testability and test-mode descriptions
      - Assembly guidelines (bonding and package)
      - External components and PCB routing guidelines
