| H.264 Solution |
|
㈜세미솔루션이
공급하는
H.264
Solution은
Digital
Surveillance
분야에서
범용적으로
사용되고
있는
Solution이며
국,내외
많은
고객들이
선정하여
제품화
하고
있습니다.
3개의
Codec을
통해
동시에
실시간
처리가
가능한
Multi-Codec
SoC
Platform으로서
D1(720x480)영상을
초당
75 Frame을
압축하여
저장하는
성능을
가지며,
SoC내에
포함된
IDE
HDD
,
PCI
,
USB
2.0
OTG
, Ethernet
MAC,
I2S,
I2C,
SD/MMC
Pheripheral
등을
이용하여
강력한
기능의
제품들을
개발할
수 있습니다.
국,내외에
안정적인
동작성능의
보장등을
통해
뛰어난
Codec
성능을
제공하는
H.264
Solution으로써
자리
잡고
있는
Digital
Surveillance
Solution
입니다.
|
|
| |
 |
 |
| |
 |
|

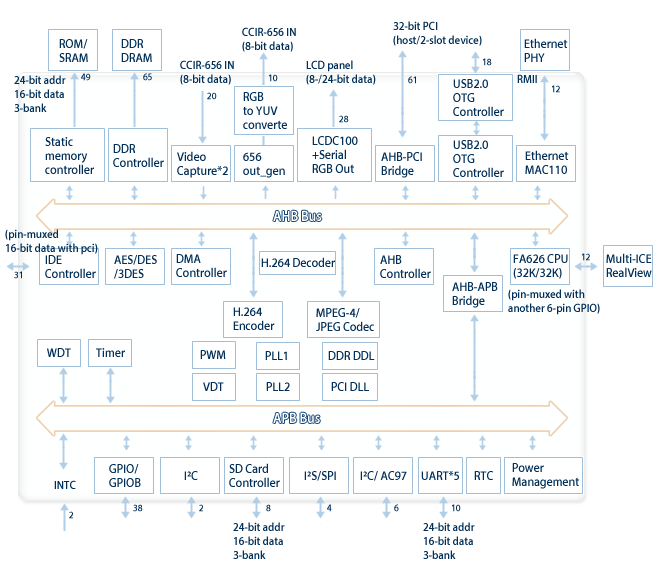

| CPU |
FA626 , 500 MHz (max.), 32K I-cache/32K D-cache ( Provided by Faraday Technology ) |
| Memory Interface |
16-/32-bit DDR SDRAM Controller up to 333 MHz/1GB |
| 8-/16-bit static memory controller, supporting NOR-type flash memory, SRAM and ROM |
| H.264 Codec |
Encoder supporting Baseline Profile, from level 1 ~ 3.1 up to D1, 75 fps Supports
VBR and CBR |
Decoder supporting Baseline Profile, from level 1 ~ 3.0 up to D1, 60 fps ASO or FMO
not supported |
| MPEG-4/JPEG Codec |
MPEG-4 supporting Simple Profile level 0 ~ 3, encoder up to D1, 60 fps or decoder up
to D1, 60 fps |
| JPEG is compliant with ISO/IEC 10918-1 baseline standard |
| Video Capture |
Supports 2 ITU 656 interfaces - YUV 4:2:2 and 16-bit YUV interface |
| Resolution: Up to 1280 x 1024 |
| Supports noise reduction, color OSD and input scalar |
| Display Interface |
ITU-656 8-bit video output, up to 720 x 480 or 720 x 576 |
| 8-/24-bit RGB interface, supporting TFT color display up to 1024 x 768 |
| OSD with 256 programmable 12 x 16 fonts |
AES/DES/3DES
Cipher Controller |
Hardware implementation of AES/DES/3DES algorithm with DMA functions |
| AHB Peripherals |
802.3 MAC, USB 2.0 OTG, ATA-133 IDE |
| APB Peripherals |
SD 1.0/MMC 4.0 controller, timer, WDT, RTC, INTC, GPIO (16-pin), I²C, PMU, I²S, UART |
| Operating Voltage |
1.2 V (core), 2.5 V (DDR DRAM I/O) and 3.3 V (I/O) |
| Process |
UMC 0.13 μm logic process |
| Package |
484-pin BGA (23 x 23 mm²) |
|
| |
 |
|
| Part# |
CPU Speed |
H.264 |
MPEG-4/JPEG |
PCI |
IDE |
Parallel REB |
CCIR656 |
UART |
Package |
| GM8160SF-BD |
300 MHz |
Enc/60 fps/D1
,Dec/60 fps/D1 |
VA |
Dual mode |
V |
24-bit |
In*2, I/O*1 |
x4B |
BGA-484 |
| GM8180SF-BD |
333 MHz |
Enc/75 fps/D1
,Dec/60 fps/D1 |
VA |
Dual mode |
V |
24-bit |
In*2, I/O*1 |
x4B |
BGA-484 |
| GM8180SS-BD |
500 MHz |
Enc/75 fps/D1
,Dec/60 fps/D1 |
VA |
Dual mode |
V |
24-bit |
In*2, I/O*1 |
x4B |
BGA-484 |
|
|
Note:
 The performance of MPEG-4/JPEG is D1/30 fps encoder and decoder full duplex.
Support one UART and one full-functional UART |
| |
 |
|
|
Mega-pixel IP camera
Network video recorder
Video server
Multi-channel DVR
PCI video encoder/decoder adaptors
IPTV station
Network set-top box/DVD
Digital media box
Network attached storage |
|
| |
|
|
|
|
|
