Cosmic Circuits Pvt. Ltd
Cosmic Circuits is the analog IP specialty company whose main office is located in Bangalore, India. Cosmic Circuits provides the differentiated analog-mixed signal silicon IP and custom analog IP and is developing various analog IPs needed for the high-advanced technology SoC (90nm ~ 40nm). Moreover, it is registered as an IP vendor for overseas prominent foundry companies and allows customers to use the needed IPs at the right time anytime by porting various IPs. Cosmic Circuits is possesses over 150 analog and mixed signal IPs and is providing specialized services for customers through its specialized engineering group that consists of over 120 staff.

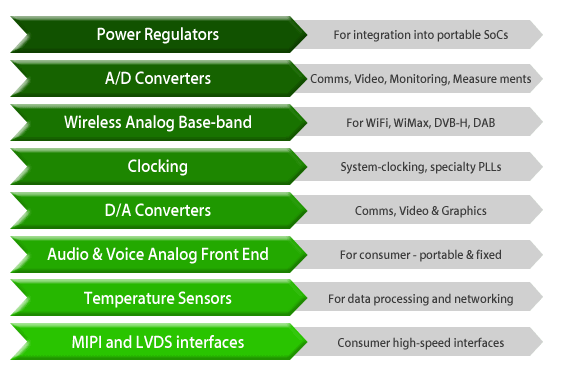

Family Name Function Process node Process Flaver Status Foundry
ADC CC120801QADC-N55LP 12-bit 80 MSPS Dual A/D Coverter 55nm Low Leakage Bronze NEC
CC14016SDADC-T65LP 14-bit 1.6 KSPS low-power sigma-delta
ADC for measurement applications		 65nm Low Leakage Silver TSMC
CC12100ADC-C130G 12-bit 100MSPS A/D coverter working off 1.2V supply and low-power consumption for Communication, Videp and Graphics. 130nm Generic Gold Chartered
CC12205ADC-C130G 12-bit 205MSPS A/D converter working off 1.2V supply and low-power consumption for Communication, Video and Graphics. 130nm Generic Silver Chartered
DAC CC12160IQ DAC - T40LP 12-bit 160MSPS Dual D/A Converter 40nm Low Leakage Silver TSMC
CC12160IQ DAC - C65LPE 12-bit 160MSPS Dual D/A Converter 65nm Low Leakage Silver Chartered
AFE CCWiMOAFE00 - T40LP Analog Front end platform for WLAN and WiMAX single and multi-channel MIMO systems, with low die-area and recive power. 40nm Low Leakage Silver TSMC
CCWiMOAFE00 - N55LP Analog Front end platform for WLAN and WiMAX single and
multi-channel MIMO systems, with low die-area and receive power.		 55nm Low Leakage Bronze NEC
Power management CC4210BK-T40LP

Buck DC -DC converter, input voltage:2.7 v to 4.2 v,
Programmable output voltage:1.0v nominal output, 400mA load, Excellent Effciency, Low inductor size

 40nm Low Leakage Silver TSMC
CC18150VREG-T40LP Voltage Regulator, 2. 0-v-3. 3v input, 1.4 V-2.5V programmable output, 150mA load, provides clean supply for digital logic (voltage islanding) 40nm Low Leakage Silver TSMC
CC33080LDO-T65LP Low-Drop-Out Voltage Regulator, 3.0-3.6v input, 2.5-2.8V output, 100mAload, provides clean supply for digital and analogblocks
 65nm Low Leakage Gold TSMC
CC18150ULNREG-S65LP Ultra-low-noise, high -PSRR, push-pull Volage Regulator,1.62-3 .6v input, 1.0V-1.2V output, 150mA-90mA load 65nm Low Leakage Silver Samsung
CC3312DPOR-C65LPE Power -On-Reset (POR) for 1.2V core and 3.3 V IO supplies, with programmable assertion delay 65nm Low Leakage Bronze Chartered
Clocking CC1322INPLL0T40LP Integer PLL with input range from 13MHz-40MHz and a 2.2GHz VCO, low 15pS rms jitter 40nm Low Leakage Silver TSMC
CC0823INPLL-N55LP Integer PLL with input range from 8MHz-40MHz and a 2.3GHz VCO, low 5pS rms jitter 55nm Low Leakage Bronze NEC
CC1015FNPLL-90LP Fractional-N PLL with input range from 13MHz -40MHz and a 1.5GHz VCO frequency, 0.03Hz frequency resolution,
low jitter 25pS rms
 90nm Low Leakage Gold IMB
Interface CCMIPITXDTHY-T65LP MIPI ®compliant 1.0GHz Transmitter 65nm Low Leakage Bronze TSMC
CCMIPIRXDPHY-T65LP MIPI ®compliant 1.0GHz Receiver 65nm Low Leakage Bronze TSMC
CC800LVDSTX-T90G 800Mbps LVDS Transmit Cell with intermal termination
programmable voltage-swing and common-mode		 90nm Generic Gold TSMC
Amplifier for Audio CC20050AMPD-C65LPE Headphone CLASS-D driver with 96 dB dynamic range 65nm Low Leakage Silver Chartered
ADC for Audio CC16024AUADC-C65LPE 256-OSR, 96 dB dynamic range Sigma-deta Stere ADC 65nm Low Leakage Silver Chartered
Speaker Driver for Audio CC20500AMPD-F90LL 20b Digital High-Performance Fiter-less 500mW Class -D
Speaker Driver		 90nm Low Leakage Silver Fujitsu
ADC for Audio CC16016SDADC - C130LP 16-bits 1. 6KSPS low-power sigma-delta ADC for measurement applications 130nm Low Leakage Silver Chartered
DAC for Audio CC2048SDDAC-N150G 20-bit High-Perfomance Stereo DAC 150nm Generic Silver IDM
Note : Gold = Silicon Proven IP
  Siliver = GDS Available
  Bronze = Under Development
  Copper = Roadmap





Physical Layout (GDS)
Netlist
Foot-print model (.LEF)
Timing model (.LIB)
Verilog models where applicable
Evaluation boards(where available)
Documents
      - Datasheet
      - Integration guidelines (signal routing, power-routing, placement, and ESD aspects)
      - Testability and test-mode descriptions
      - Assembly guidelines (bonding and package)
      - External components and PCB routing guidelines
