Innostor
|
| |
Innostor Technology 는 2008년 에 창립되었으며 시장의 요구에 부응하기 위하여 경쟁력/ 도전적인 핵심 선도기술을 바탕으로 고부가가치의 제품을 개발해 오고 있습니다.
또한 경쟁력 있는 개발 엔지니어를 보유하여 지속적인 개혁, 전문성을 발휘하는 환경을 제공하여 성공적인 전략 파트너쉽을 통한 세계적으로 주요한 IC 공급자로서 선구자 역할을 하고 있습니다.
(주)세미솔루션은 대만의 스토리지용 반도체 전문기업인 Innostor 테크놀로지와도 제휴하여 USB 3.0 UFD Controller인 "IS902"와 USB3.0 to SATAII Storage Controller 인 "IS888" 제품을 출시했습니다.
|
|
| |
 |
|
|
|
|
| Interface |
USB2.0
(IS803)
|
USB2.0
(IS802 & IS801)
|
USB3.0
(IS902)
|
SATAI
(IS802 $ IS805)I
|
| SPec of Speed |
480Mb/s |
480Mb/s |
5Gb/s |
3Gb/s |
|
Data transfer
rates
(Read/Write)
|
R:35MB/s
W:22MB/s
|
R:32MB/s
W:20MB/s
|
600MB/s
(SPec of Speed) |
IS802
R:95MB/s
W:40MB/s
IS802
R:230MB/s
W:160MB/s
|
| Storage Capacity |
4GB~16GB |
4GB~64GB |
4GB~250GB |
4GB~250GB |
| Product Application |
Pen Drive, |
Pen Drive,
Enclosure,1.8 inch,
2.5 inch
|
Pen Drive |
High Capacity
SSD, Esata Pan drive
|
|
|
|
|
|
 |
|
|
|
|
Flash support
Support 4xnm,3xnm,2xnm process Flash from various vendors
2ch independent, up to 16CEs
Support bad block management 6/24/27 bits ECC protection
1.2V low power consumption design
Support EF –Nand Flash
Support ONFI 2.2 spec. interface
8 bits NAND Flash Interface support
Feature
Compliant with USB 2.0 backward compatible with USB 1.1
Compliant with USB Mass Storage Class spec. version 1.0
Built-in high efficiency 3.3V-to-1.2V regulator
Customized VID/PID with serial number
64LQFP/80LQFP package
Operating system supported: Win7/Vista/Win XP/2000/Me
Mac OS 9.X/Linux
Pass the Windows 7 DTM logo Test
1.2V low power consumption design
|
|
| |
 |
|
|
| |

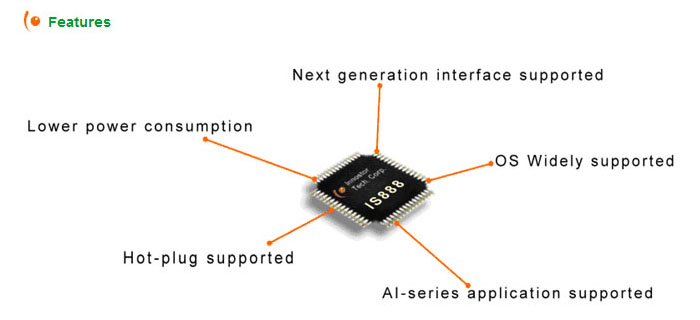

IS888 is single chip USB storage controller, which can achieve high throughput with lower power
consumption, industry standard compliance.
|
|
|
The key features for this product, as Innostor Technology emphasizes, is to show not only the high speed performance( max. Read / Write speed = 210MB / sec & 145MB / sec ) for USB3.0 interface in the storage application area but also the low power, low cost, high compatibility merits which can help customers quickly introducing their USB3.0 storage products as well as cutting down their products development cycles.
|
|
|
|
|
|
|
|
