Grain Media의 멀티미디어 솔루션은 고성능의 RISC Processor가 내장된 SoC 솔루션이며 이는 보다 다양하고 고성능의 오디오 솔루션을 기대하는 고객들에게 제안하기에 가장 적합한 가격대비 성능이 우수한 솔루션입니다. 멀티미디어 솔루션은 가격, 저전력소모, 고성능을 모두 만족 시키는 솔루션으로써 멀티미디어 플레이어와 같은 다양한 Handheld 제품에 적용할 수 있으며, 네트웍에 직접 연결이 가능하여 고객이 원하는 응용 분야를 다양하게 확대 할 수 있습니다.


The GM7009 32-bit 166 MHz FA510 embedded RISC processor is a cost-effective, low-power, and high performance
SoC solution targeting handheld devices and Internet appliance applications. GM also provides FA510-based media
lbrary like MP3/WMA/AAC/JPEG decoders to help customers implement their high performance media applications
in an ever competitive market. In conjunction with the system solution, GM provides pre-verified technologies and developing boards for customers to develop their unique SoCs within minimal turnaround time. The board is a virtual
development tool, providing necessary OS design kit and drivers to ease the software design efforts with lower entry
barriers; consequently, customers can substantially reduce the software and system development cost with a
significant saving ( 50% to 75% reduction) compared to to the non-platform alternative.

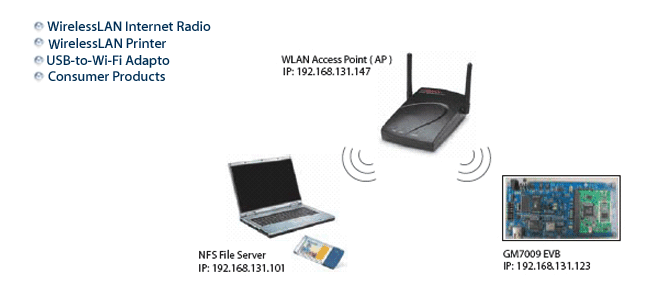

Among the most popular applications, GM7009 addresses the Internet radio. With the in-house wireless LAN driver
and the support from Faraday Technology's media library, customers can easily complete the verification and software
development in one month. Not only 802.11b and 802, 11g are supported, the driver is also compatible with WPA
personal and WPAII personal standards. A complete certification flow is also available for customers to achieve the
wireless LAN certification .

CPU ARM-based 32-bit RISC CPU with 4K I-cache and 4K D-cache
Memory Interface 16-bit SDRAM (up to 32 MB) and 16-bit SRAM/Flash (up to 4 MB)
PCI Interface Supports 2-slot PCI masters, with a dedicated PCI - SDRAM AHB local memory bus
Clocking 11.2896 or 12.288 MHz Oscillators, Programmable frequency Core PLL
Power Management Frequency change control, Clock gating control
Process 0.18 μm , 1P6M, pure logic
Package LQFP-160
Operating Voltage 1.8 V (core), 3.3 V (I/O)
Operating Freq. CPU up to 166 MHz, AHB up to 100 MHz and APB up to 50 MHz
