| H.264 Solution |
|
| The H.264 solution supplied by Semisolution is the solution generally used in the digital surveillance area is selected by many domestic and overseas customers for producing products.
It has the function of compressing and saving the D1 (720x480) video with the 74 frames a second as the multi-codec SoC platform performing the concurrent real-time processing through 3 codecs, and the products with strong functions can be developed by utilizing IDE HDD, PCI, USB 2.0 OTG, Ethernet MAC, I2S, I2C, and SD/MMC peripheral included in SoC. It is the digital surveillance system playing the role as the H.264 solution providing the excellent codec performance by guaranteeing the stable operation performance domestically and overseas. |
|
| |
 |
 |
| |
 |
|

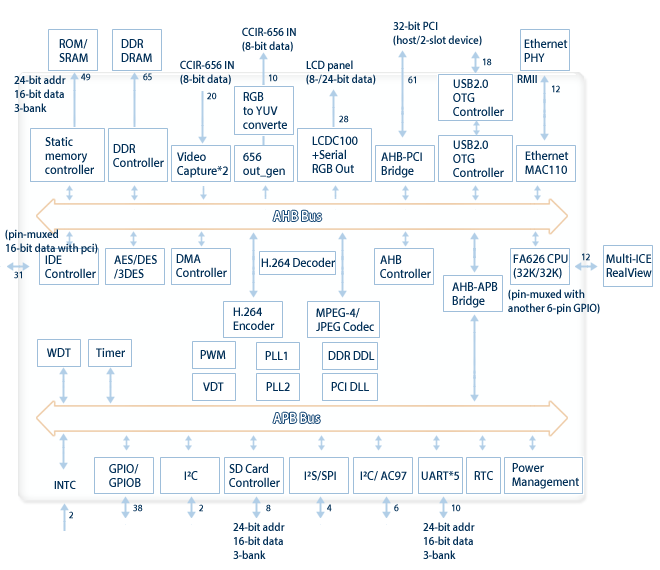

| CPU |
FA626 , 500 MHz (max.), 32K I-cache/32K D-cache ( Provided by Faraday Technology ) |
| Memory Interface |
16-/32-bit DDR SDRAM Controller up to 333 MHz/1GB |
| 8-/16-bit static memory controller, supporting NOR-type flash memory, SRAM and ROM |
| H.264 Codec |
Encoder supporting Baseline Profile, from level 1 ~ 3.1 up to D1, 75 fps Supports
VBR and CBR |
Decoder supporting Baseline Profile, from level 1 ~ 3.0 up to D1, 60 fps ASO or FMO
not supported |
| MPEG-4/JPEG Codec |
MPEG-4 supporting Simple Profile level 0 ~ 3, encoder up to D1, 60 fps or decoder up
to D1, 60 fps |
| JPEG is compliant with ISO/IEC 10918-1 baseline standard |
| Video Capture |
Supports 2 ITU 656 interfaces - YUV 4:2:2 and 16-bit YUV interface |
| Resolution: Up to 1280 x 1024 |
| Supports noise reduction, color OSD and input scalar |
| Display Interface |
ITU-656 8-bit video output, up to 720 x 480 or 720 x 576 |
| 8-/24-bit RGB interface, supporting TFT color display up to 1024 x 768 |
| OSD with 256 programmable 12 x 16 fonts |
AES/DES/3DES
Cipher Controller |
Hardware implementation of AES/DES/3DES algorithm with DMA functions |
| AHB Peripherals |
802.3 MAC, USB 2.0 OTG, ATA-133 IDE |
| APB Peripherals |
SD 1.0/MMC 4.0 controller, timer, WDT, RTC, INTC, GPIO (16-pin), I²C, PMU, I²S, UART |
| Operating Voltage |
1.2 V (core), 2.5 V (DDR DRAM I/O) and 3.3 V (I/O) |
| Process |
UMC 0.13 ¥ìm logic process |
| Package |
484-pin BGA (23 x 23 mm²) |
|
| |
 |
|
| Part# |
CPU Speed |
H.264 |
MPEG-4/JPEG |
PCI |
IDE |
Parallel REB |
CCIR656 |
UART |
Package |
| GM8160SF-BD |
300 MHz |
Enc/60 fps/D1
,Dec/60 fps/D1 |
VA |
Dual mode |
V |
24-bit |
In*2, I/O*1 |
x4B |
BGA-484 |
| GM8180SF-BD |
333 MHz |
Enc/75 fps/D1
,Dec/60 fps/D1 |
VA |
Dual mode |
V |
24-bit |
In*2, I/O*1 |
x4B |
BGA-484 |
| GM8180SS-BD |
500 MHz |
Enc/75 fps/D1
,Dec/60 fps/D1 |
VA |
Dual mode |
V |
24-bit |
In*2, I/O*1 |
x4B |
BGA-484 |
|
|
Note:
 The performance of MPEG-4/JPEG is D1/30 fps encoder and decoder full duplex.
Support one UART and one full-functional UART |
| |
 |
|
|
Mega-pixel IP camera
Network video recorder
Video server
Multi-channel DVR
PCI video encoder/decoder adaptors
IPTV station
Network set-top box/DVD
Digital media box
Network attached storage |
|
| |
|
|
|
|
|
