| Multimedia Solution |
|
The multimedia solution provided by Grain Media is the SoC solution that has the high performance RISC processor embedded within and is outstanding value vis a vis performance, making it the solution that is the most suitable to customers demanding a multi-purpose and higher quality audio solution.
This multimedia solution, which is great value, has low power consumption, and is high performance, can be applied to various handheld products such as multimedia players and can be directly connected to a network so that the application possibilities for customers are very wide. |
|
| |
 |
|
The GM7009 32-bit 166 MHz FA510 embedded RISC processor is a cost-effective, low-power, and high performance
SoC solution targeting handheld devices and Internet appliance applications. GM also provides FA510-based media
lbrary like MP3/WMA/AAC/JPEG decoders to help customers implement their high performance media applications
in an ever competitive market. In conjunction with the system solution, GM provides pre-verified technologies and developing boards for customers to develop their unique SoCs within minimal turnaround time. The board is a virtual
development tool, providing necessary OS design kit and drivers to ease the software design efforts with lower entry
barriers; consequently, customers can substantially reduce the software and system development cost with a
significant saving ( 50% to 75% reduction) compared to to the non-platform alternative. |
|
| |
 |
|

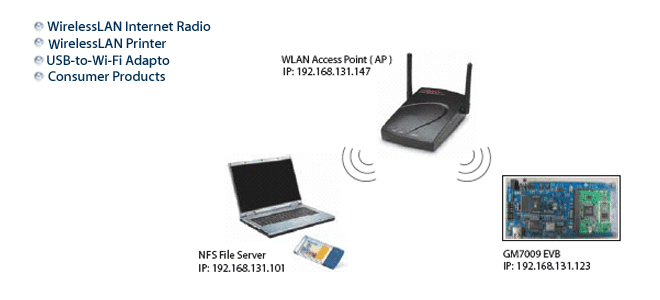

Among the most popular applications, GM7009 addresses the Internet radio. With the in-house wireless LAN driver
and the support from Faraday Technology's media library, customers can easily complete the verification and software
development in one month. Not only 802.11b and 802, 11g are supported, the driver is also compatible with WPA
personal and WPAII personal standards. A complete certification flow is also available for customers to achieve the
wireless LAN certification . |
|
| |
 |
|
| CPU |
ARM-based 32-bit RISC CPU with 4K I-cache and 4K D-cache |
| Memory Interface |
16-bit SDRAM (up to 32 MB) and 16-bit SRAM/Flash (up to 4 MB) |
| PCI Interface |
Supports 2-slot PCI masters, with a dedicated PCI - SDRAM AHB local memory bus |
| Clocking |
11.2896 or 12.288 MHz Oscillators, Programmable frequency Core PLL |
| Power Management |
Frequency change control, Clock gating control |
| Process |
0.18 ¥ìm , 1P6M, pure logic |
| Package |
LQFP-160 |
| Operating Voltage |
1.8 V (core), 3.3 V (I/O) |
| Operating Freq. |
CPU up to 166 MHz, AHB up to 100 MHz and APB up to 50 MHz |
|
| |
 |
 |
|
| |
|
|
|
|
|
